Sizes & Post Layouts
4 Post Sizes in this Configuration
- 10′ x 10′
- 10′ x 12′
- 10′ x 16′
- 12′ x 12′
- 12′ x 14′
- 12′ x 16′
- 14′ x 14′
- 14′ x 16′
- 16′ x 16′
6 Post Sizes in this Configuration
- 12′ x 20′
- 12′ x 24′
- 14′ x 20′
- 14′ x 24′
- 14′ x 28′
- 16′ x 20′
8 Post Sizes in this Configuration
- 14′ x 32′
- 16′ x 24′
- 16′ x 28′
- 16′ x 32′
- 20′ x 20′
- 20′ x 24′
- 20′ x 28′
Specifications
| A | B | C |
|---|---|---|
| 10’ | 8′ | 11’ 10″ |
| 12’ | 8′ | 12′ 6″ |
| 14’ | 8′ | 13′ 4″ |
| 16’ | 8′ | 14′ |
| 20’ | 8′ | 15′ 7″ |
How It’s Made
Product Overview Video

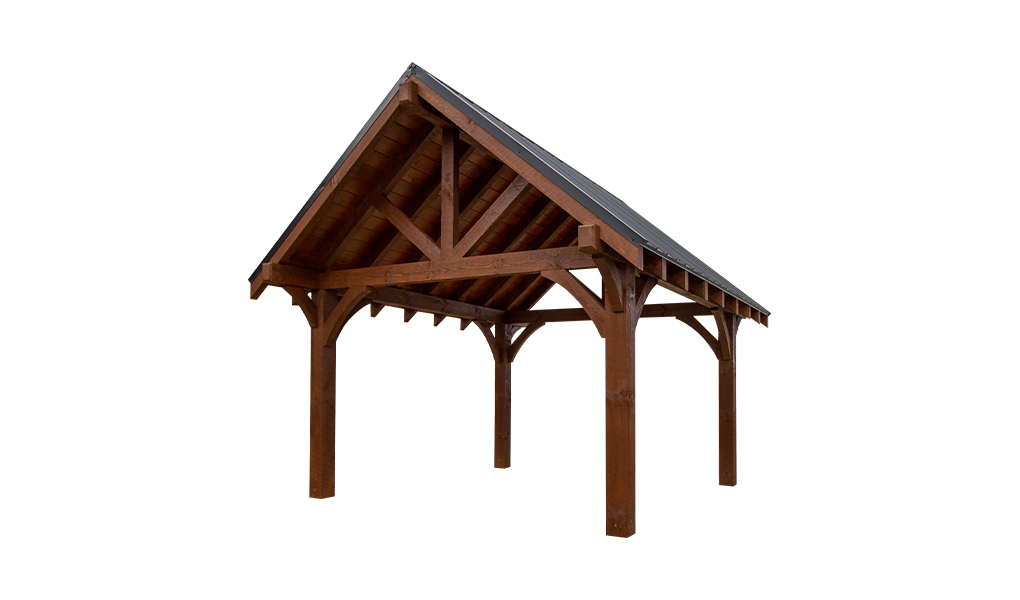

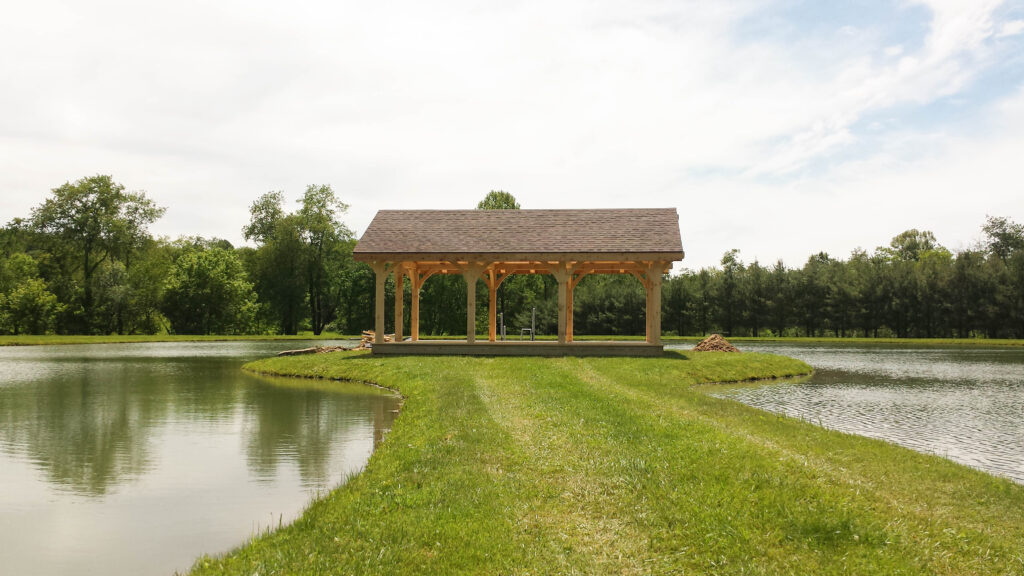

The Timber Ridge Pavilion is a beautifully constructed pavilion. Constructed of beautiful large timbers that are cut and shaped to the perfect size. These timbers are often paired with a durable, and nicely contrasting, metal roof. This structure is built of our finest materials and is meant to last for years to come.
Bracket Choices
Curved
Straight
Catalog Downloads
Options
Paints
Silver Maple
Buckskin
Taupe
Driftwood
Dark Brown
Meadowview Ebony
Bear Beige
Navajo White
Espresso
Barn Red
Jamestown Red
Mountain Red
Jasper Gray
Clay
Timberbark
Truffle
Bronze
Pioneer
Dark Gray
Heritage Blue
Bora Bora
Deep Ocean
Midnight
Black
Barn White
GP Gray
Steel Gray
Charcoal
Central States Charcoal
Mopboard Black
Avocado
Shale
Stains
Pine Siding
Natural
Smoke
Pecan
Bark
Chestnut Brown
Ebony
Dark Oak
Shingles
Standard – Dimensional
Driftwood
Estate Gray
Onyx Black
Desert Tan
Teak
Brownwood
Optional – Duration
Driftwood
Estate Gray
Onyx Black
Chateau Green
Teak
Brownwood
Metal Roof Colors
Gallery Blue
Green
Hawaiian Blue
Bright Red
Bright White
Black
Galvalume
Light Gray
Light Stone
Brown
Burgundy
Charcoal
Rustic Red
Tan
Clay
Antique Bronze
Roof Pitch
Sheds Steeper Roof Pitch – up to 8/12 Pitch (per sq. ft. X 1 pitch increase)
4/12 Pitch
6/12 Pitch
8/12 Pitch
Sheds Steeper Roof Pitch -9/12 to 12/12 Pitch (per sq. ft. X 1 pitch increase)
Img Roof Pitch 10 12
12/12 Pitch
Large Structures Steeper Roof Pitch – up to 7/12 Pitch (per sq. ft. X 1 pitch increase)
4/12 Pitch
6/12 Pitch
Wood
Square (Standard)
Smooth Pine
Wood Base
Vinyl
White (Standard)
Clay
Accents
Wood Base
3′ Post Wrap
Delivery & Setup
Prices include delivery and set up. Free delivery is available within 30 miles of our headquarters in Sugarcreek. If you live farther away and are curious about delivery cost, contact us to get a delivery quote.
